From plug to mold
 Home   Dinghy

After the plug is waxed, a layer of white gelcoat was sprayed on the mold and a number of layers of glass were applied.

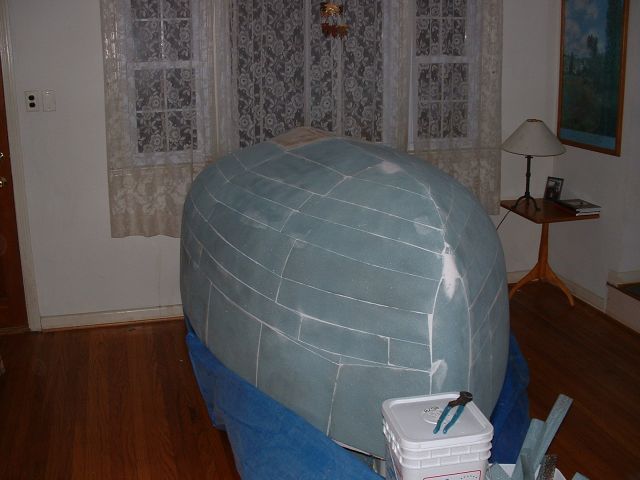

I heat formed 2 inch PVC foam and glued it to the layer of glass. The entire shell was then rough sanded.

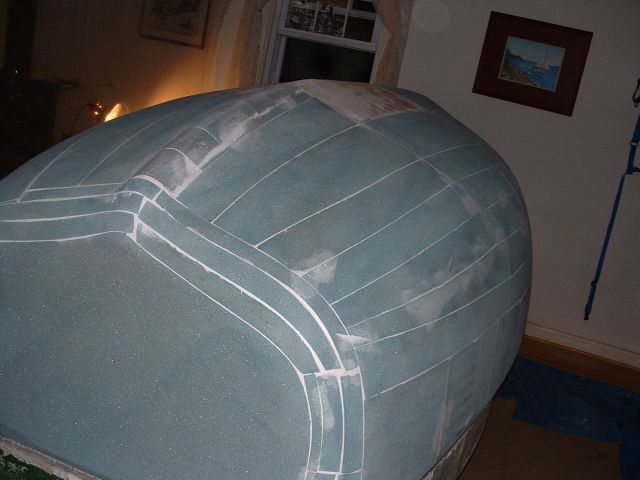

  • This is what it looked like from the back end. Foam was added to make a stiff sandwich construction because the vacuum infusion method can load the mold if one is not careful.

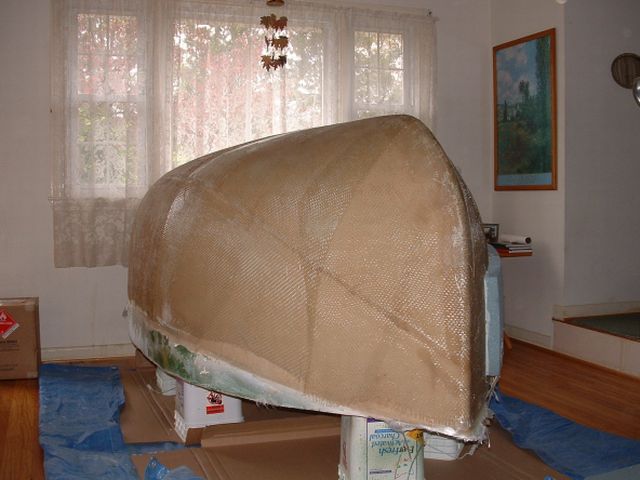

  • The foam was covered with another layer of glass to make a sandwich construction.

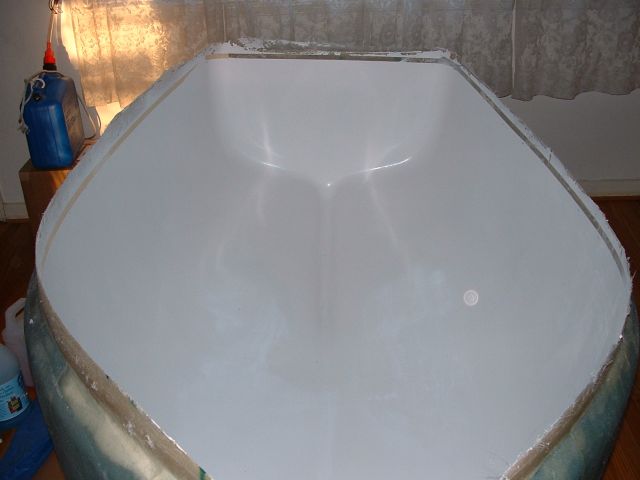

This is what the mold looked like when removed from the plug.

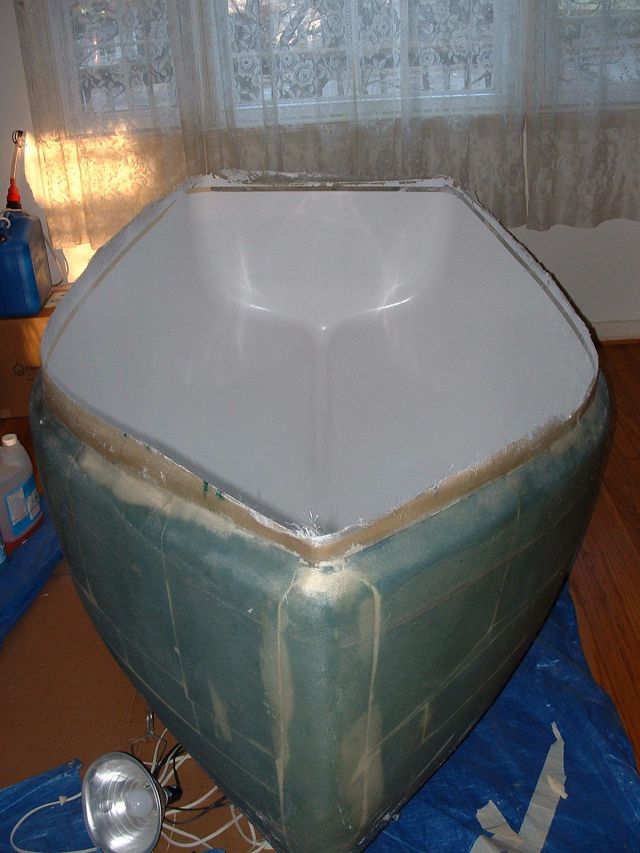

From a slightly different angle.
